Specifications
JULABO PRESTO® Highly Dynamic Temperature Control Systems provide fast and precise liquid temperature control for external applications. PRESTO provide large heating and cooling capacities covering a working temperature range from -92 °C to +250 °C. Systems provide high flow rates, a controlled build-up of pump pressure with integrated pressure control. Changes in the temperature-control fluid viscosity are balanced dynamically. Integrated 5.7’’ industrial color touch screen; multi-lingual with programmability and user level management. Systems include external Pt100 sensor capability, RS232, Ethernet, USB I/O with integrated TCP/IP ModBus communication. Optional analog module. USB-A and SD memory card slots for data-recording.

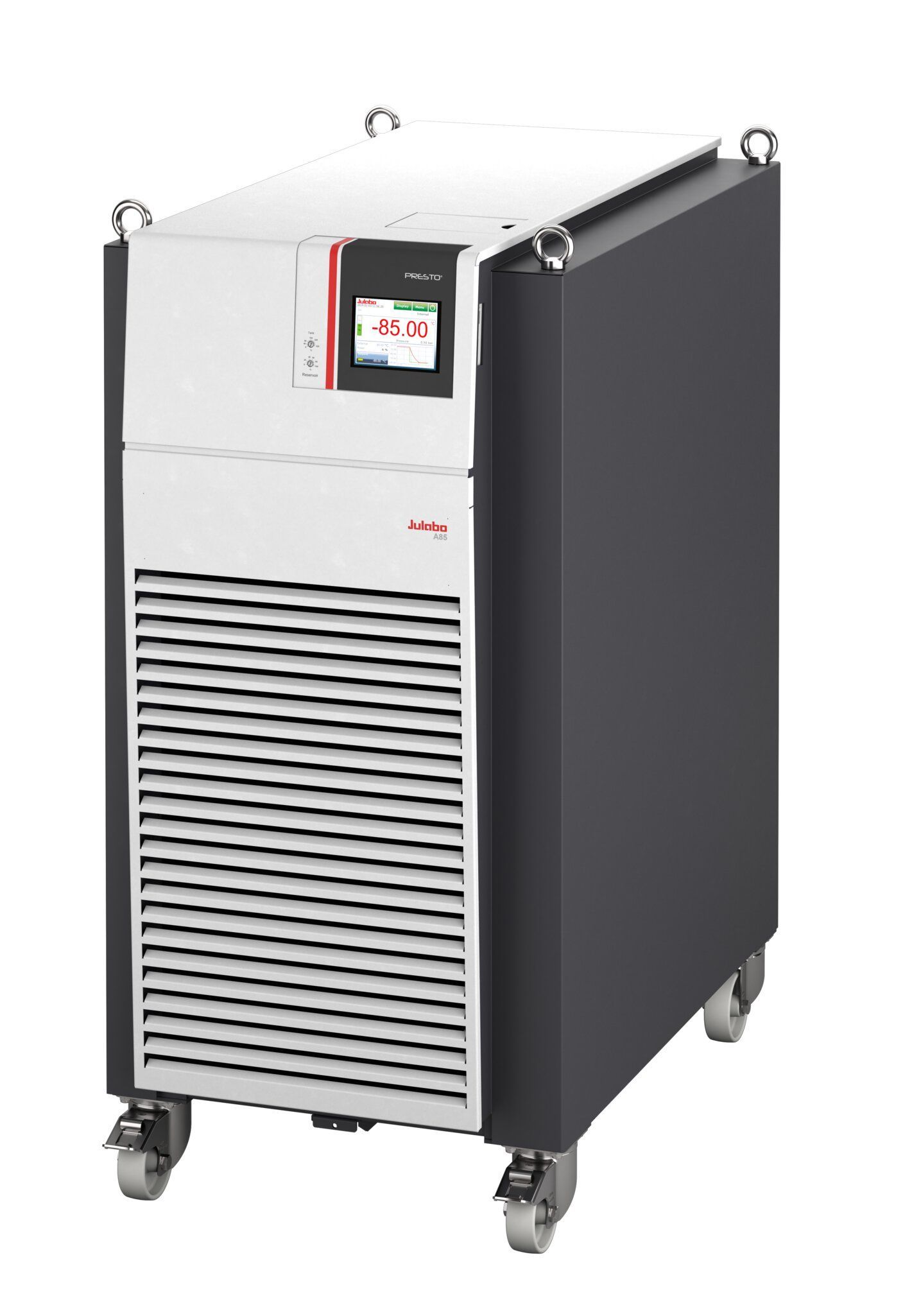

PRESTO A85t, operating range -85…+250 °C with 12.5-15kW heating power. Cooling power: 2.5kW at 20 °C, 2.4kW at 0 °C, 2.4kW at -20 °C, 2.4kW at -30 °C, 2.4kW at -40 °C, 2.2kW at -60 °C, 0.4kW at -80 °C. Adjustable pump 0…80L/min; 1.5…43.5 PSI, 50cSt fluid viscosity maximum, M30x1.5 threaded pump connections. Minimal internal process volume 9.5L with 7L internal expansion volume. Dimensions: 24 x 42.5 x 49.2 inches (WxLxH); 804.7 lbs. 208-230V/3PPE/60Hz bare wire. R507/R23 refrigerants
