Specifications
JULABO PRESTO® Highly Dynamic Temperature Control Systems provide fast and precise liquid temperature control for external applications. PRESTO provide large heating and cooling capacities covering a working temperature range from -92 °C to +250 °C. Systems provide high flow rates, a controlled build-up of pump pressure with integrated pressure control. Changes in the temperature-control fluid viscosity are balanced dynamically. Integrated 5.7’’ industrial color touch screen; multi-lingual with programmability and user level management. Systems include external Pt100 sensor capability, RS232, Ethernet, USB I/O with integrated TCP/IP ModBus communication. Optional analog module. USB-A and SD memory card slots for data-recording.

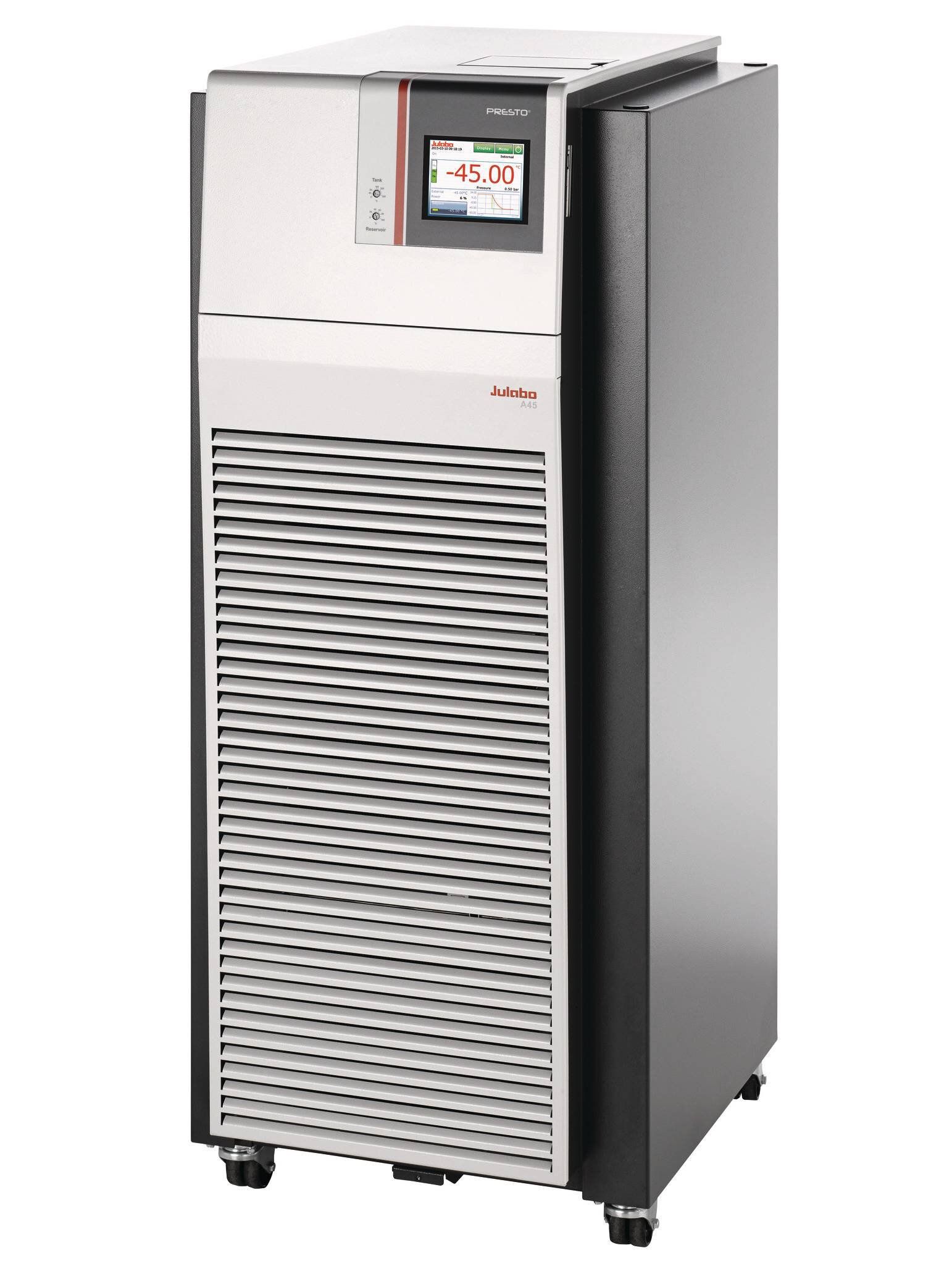

PRESTO A45 operating range -45…+250 °C with 5.5-6kW heating power. Cooling power: 3.5kW at 20 °C, 3.1kW at 0 °C, 2.5kW at -10 °C, 1.8kW at -20 °C, 0.7kW at -30 °C, 0.2kW at -40 °C. Adjustable pump 0…80L/min; 1.5…43.5 PSI, 50cSt fluid viscosity maximum, M30x1.5 threaded pump connections. Minimal internal process volume 7.5L with 7.5L internal expansion volume. Dimensions: 20.9 x 26.2 x 49.6 inches (WxLxH); 463 lbs. 208-230V/3PPE/60Hz bare wire. R449A refrigerant.
