Specifications

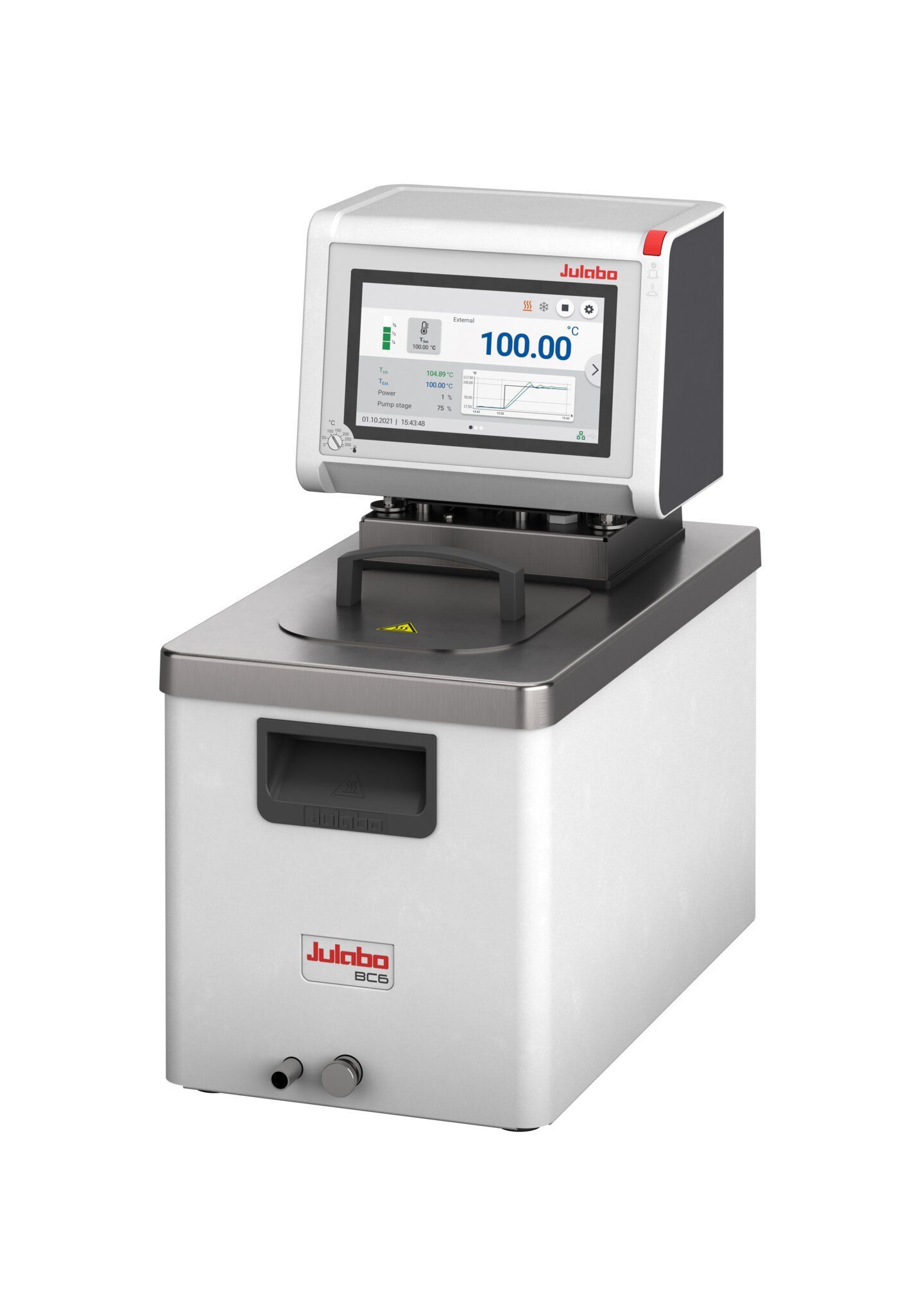

MAGIO MX-BC6 heating circulator, +20…+300 °C range with 3kW heating power and integrated cooling coil. Adjustable pressure/suction centrifugal pump 16-31L/min, 3.5-13.3psi. Maximum fluid viscosity 70cSt. 4.5-6L SS bath tank with integrated drain valve, USB-B, RS232/RS485, Ethernet communication ports, USB-A data-logging; Pt100 port for external control, programmable; usable bath opening 5.1 x 5.9/7.9 inches (WxL/D); Dimensions: 9.4 x 17.3x 18.5 inches (WxLxH), 28.2 lbs. 200-230V/50-60Hz with NEMA N6-20 plug. M16x1 threaded pump connections with 8mm and 12mm hose barbs.
