Specifications

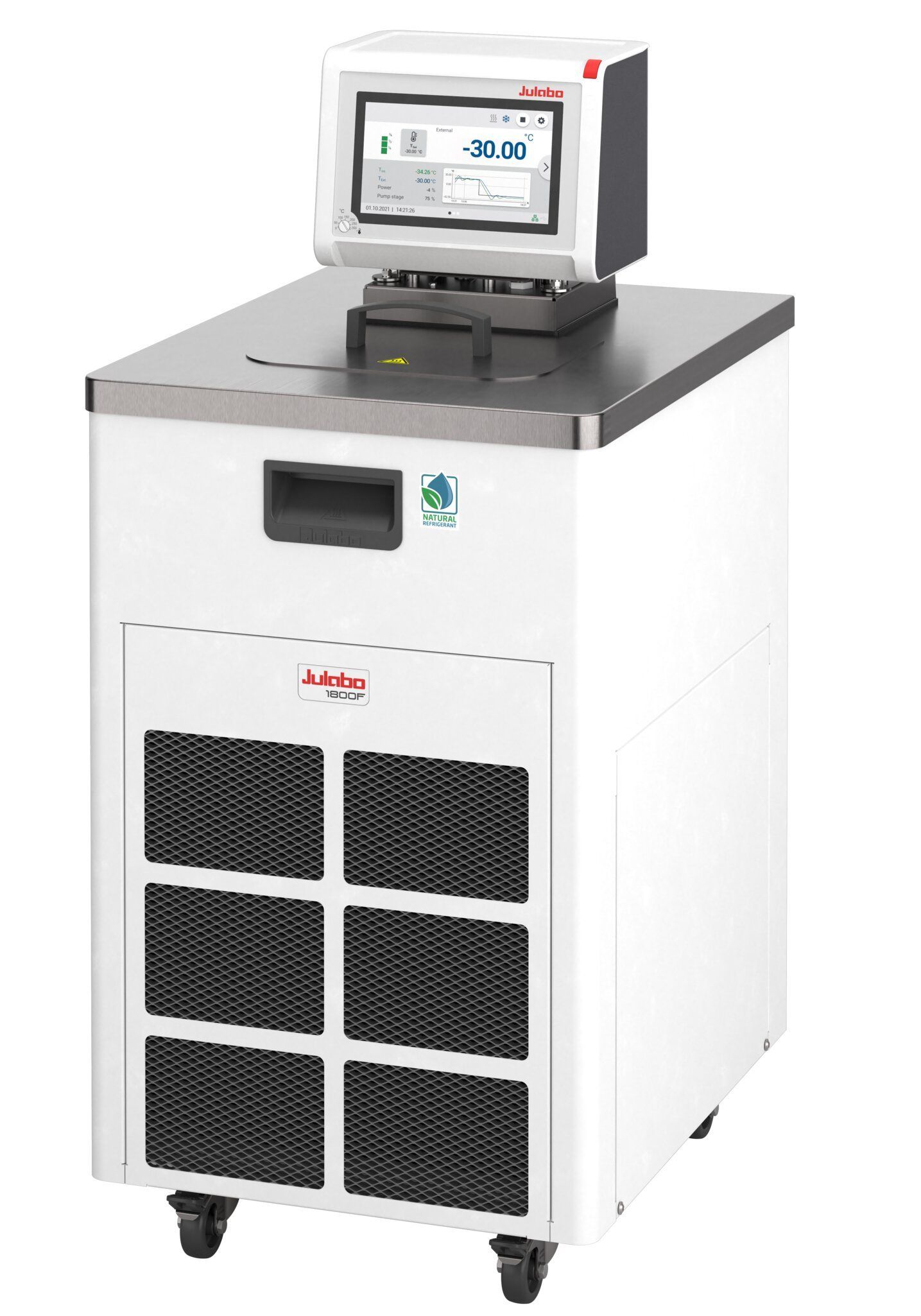

MAGIO MX-1800F refrigerated/heating circulator, -50…+200 °C range with 2kW heating power. Cooling power: 1.87kW at 20 °C, 1.57kW at 0 °C, 0.77kW at -20 °C, 0.47kW at -30 °C, 0.3kW at -40 °C. Adjustable pressure/suction centrifugal pump 16-31L/min, 3.5-13.3psi. Maximum fluid viscosity 70cSt. 6.5-11L SS bath tank, USB-B, RS232/RS485, Ethernet communication ports, USB-A data-logging; Pt100 port for external control, programmable; usable bath opening 7.1 x 5.1/7.9 inches (WxL/D); Dimensions: 15.7 x 19.7 x 35inches (WxLxH), 134.5 lbs, with locking casters; R1270 refrigerant. 200-230V/50-60Hz with NEMA N6-20 plug. M16x1 threaded pump connections with 8mm and 12mm hose barbs.
