Specifications

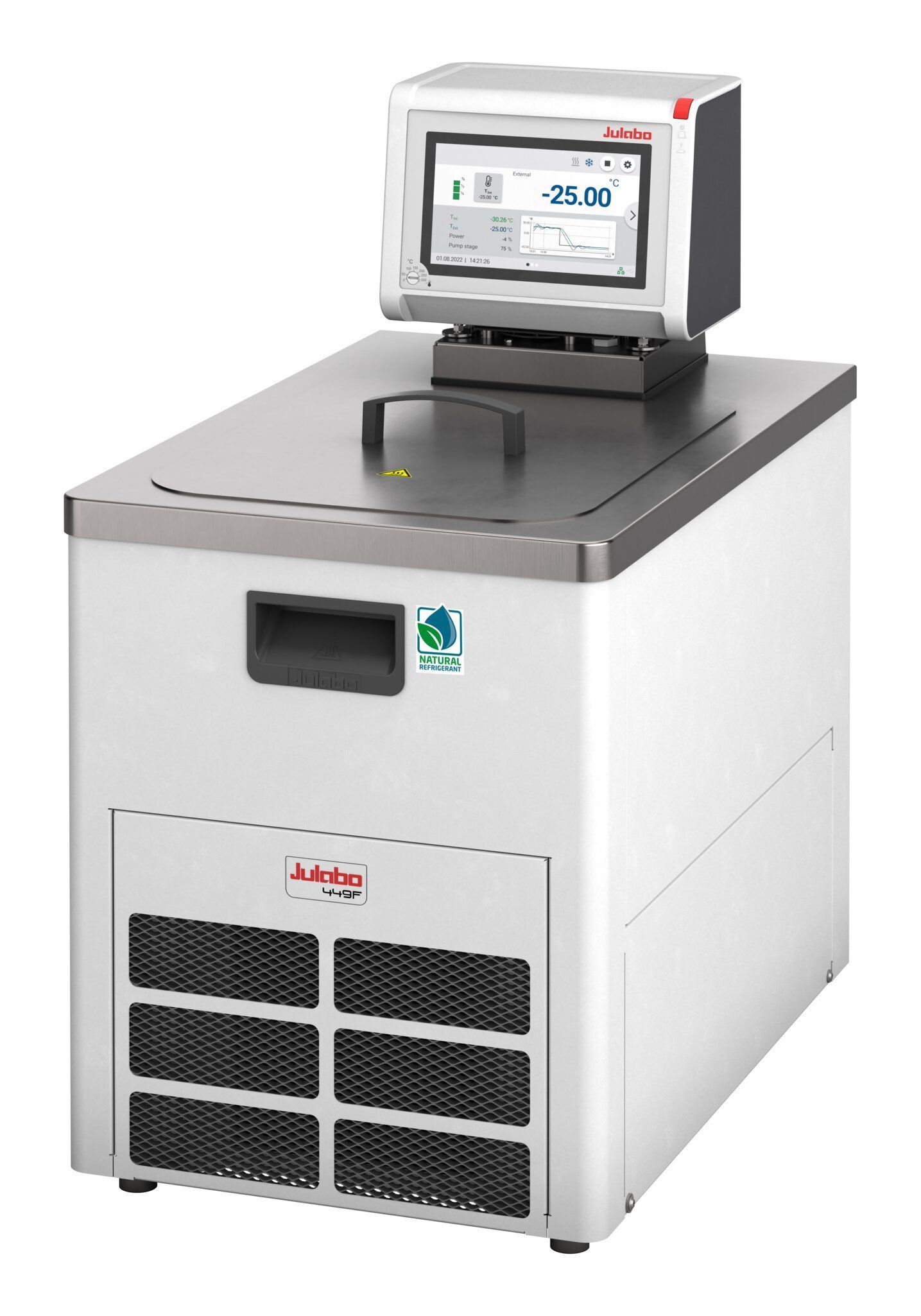

MAGIO MS-449F refrigerated/heating circulator, -30…+200 °C range with 1kW heating power. Cooling power: 0.46kW at 20 °C, 0.37kW at 0 °C, 0.29kW at -10 °C, 0.22kW at -20 °C, 0.08kW at -30 °C. Adjustable pressure/suction centrifugal pump 16-31L/min, 3.5-13.3psi. Maximum fluid viscosity 70cSt. 21-30L SS bath tank recommended for internal applications, USB-B, RS232/RS485, Ethernet communication ports, USB-A data-logging; Pt100 port for external control, programmable; usable bath opening 11 x 13.8/7.9 inches (WxL/D); Dimensions: 14.6 x 23.2 x 27.2 inches (WxLxH), 92.6 lbs. R290 refrigerant. 115V/60Hz with NEMA N5-15 plug. M16x1 threaded pump connections with 8mm and 12mm hose barbs.
