Specifications

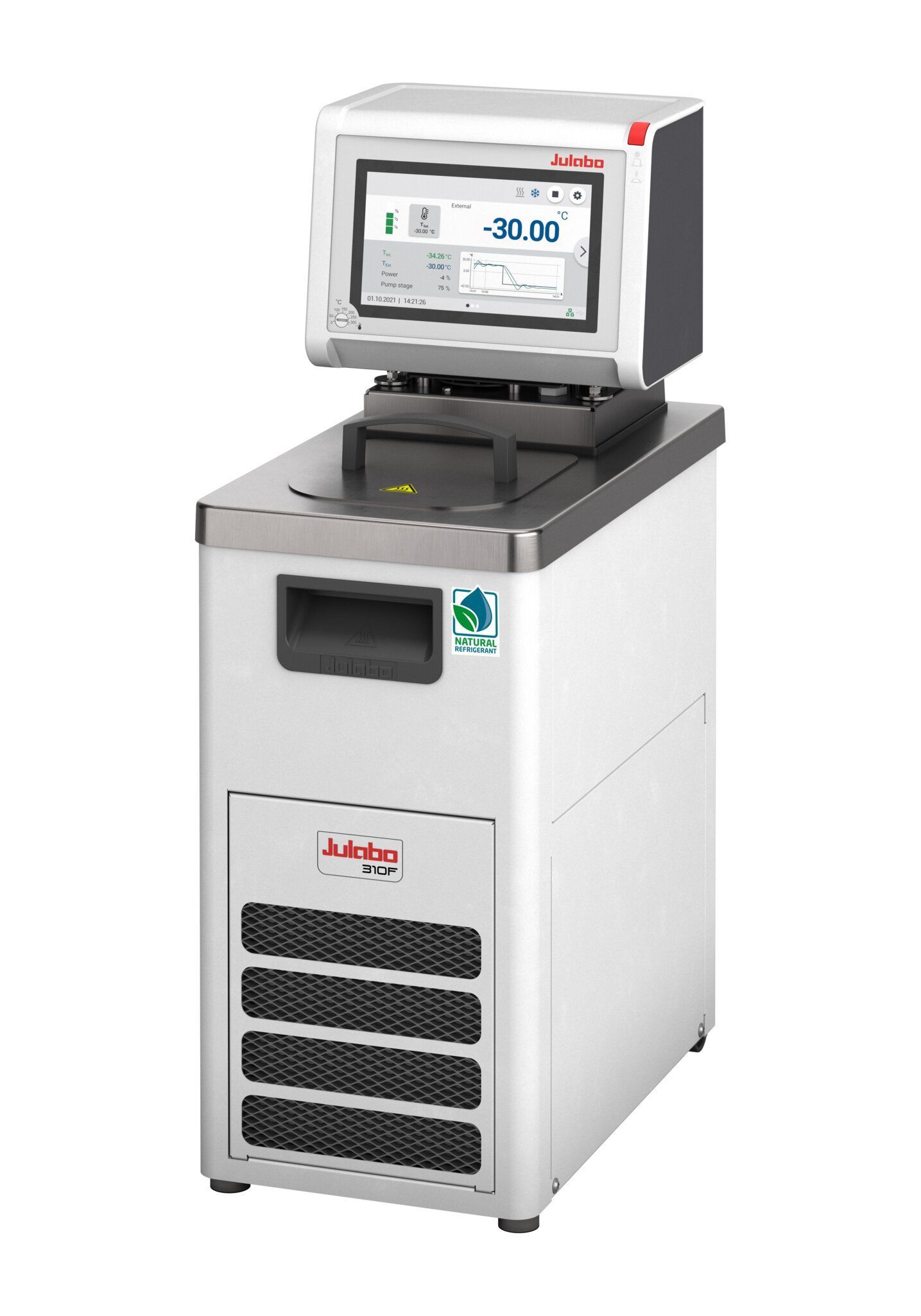

MAGIO MS-310F refrigerated/heating circulator, -30…+200 °C range with 1kW heating power. Cooling power: 0.33kW at 20 °C, 0.28kW at 0 °C, 0.23kW at -10 °C, 0.13kW at -20 °C, 0.05kW at -30 °C. Adjustable pressure/suction centrifugal pump 16-31L/min, 3.5-13.3psi. Maximum fluid viscosity 70cSt. 3-4L SS bath tank, USB-B, RS232/RS485, Ethernet communication ports, USB-A data-logging; Pt100 port for external control, programmable; usable bath opening 5.1 x 5.9/5.9 inches (WxL/D); Dimensions: 9.1 x 15.4 x 25.6 inches (WxLxH), 64 lbs. R290 refrigerant. 115V/60Hz with NEMA N5-15 plug. M16x1 threaded pump connections with 8mm and 12mm hose barbs.
