Specifications

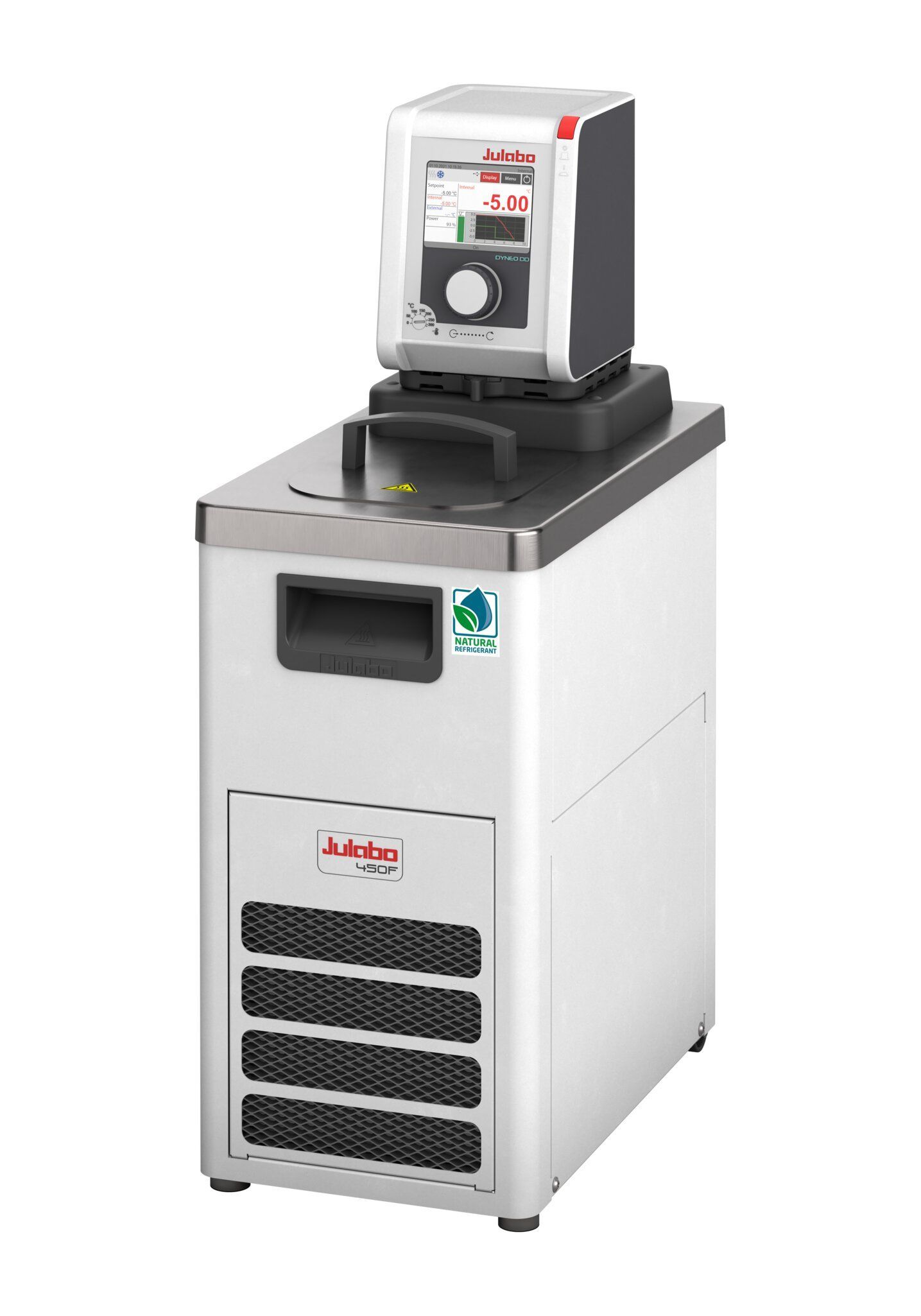

DYNEO DD-450F refrigerated/heating circulator, -30…+200 °C range with 1kW heating power. Cooling power: 0.44kW at 20 °C, 0.37kW at 0 °C, 0.27kW at -10 °C, 0.16kW at -20 °C, 0.03kW at -30 °C. Adjustable centrifugal pump to 8-27L/min, 1.5-10.2psi. Maximum fluid viscosity 50cSt. 3-4L SS bath tank, USB-B and RS232 communication ports, USB-A data-logging; Pt100 port for external control, programmable; usable bath opening 5.1 x 5.9/5.9 inches (WxL/D); Dimensions: 9.1 x 15.4 x 25.6 inches (WxLxH), 60.4 lbs. R290 refrigerant. 115V/60Hz with NEMA N5-15 plug. M16x1 threaded pump connections with 8mm and 12mm hose barbs.
