Specifications

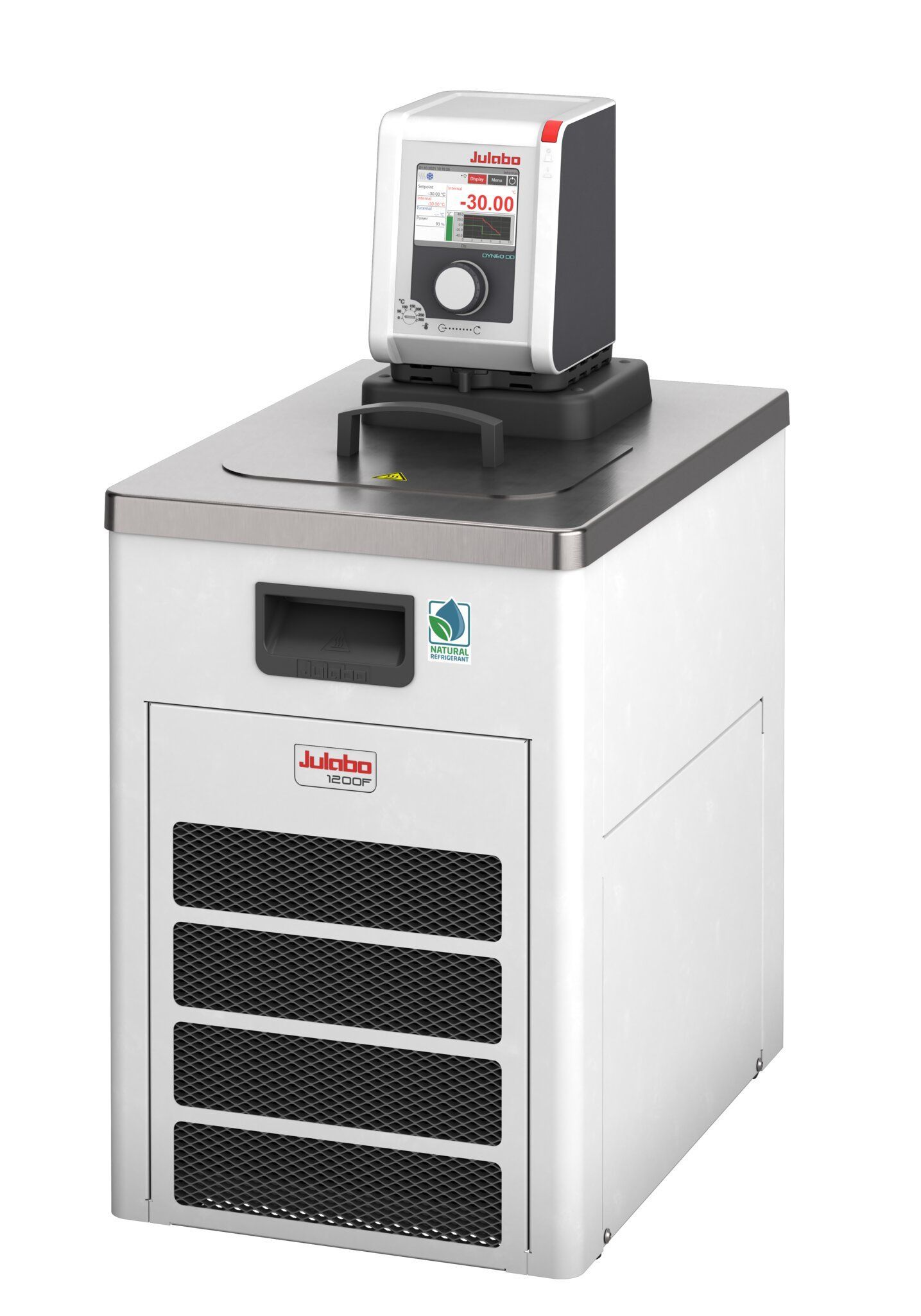

DYNEO DD-1200F refrigerated/heating circulator, -50…+200 °C range with 1kW heating power. Cooling power: 1.24kW at 20 °C, 1.09kW at 0 °C, 0.62kW at -20 °C, 0.37kW at -30 °C, 0.2kW at -40 °C. Adjustable centrifugal pump to 8-27L/min, 1.5-10.2psi. Maximum fluid viscosity 50cSt. 5-7.5L SS bath tank, USB-B and analog communication ports, USB-A data-logging; Pt100 port for external control, programmable; usable bath opening 7.1 x 5.1/5.9 inches (WxL/D); Dimensions: 13 x 18.5 x 27.6 inches (WxLxH), 97 lbs. R1270 refrigerant. 115V/60Hz with NEMA N5-20 plug. M16x1 threaded pump connections with 8mm and 12mm hose barbs.
