Specifications

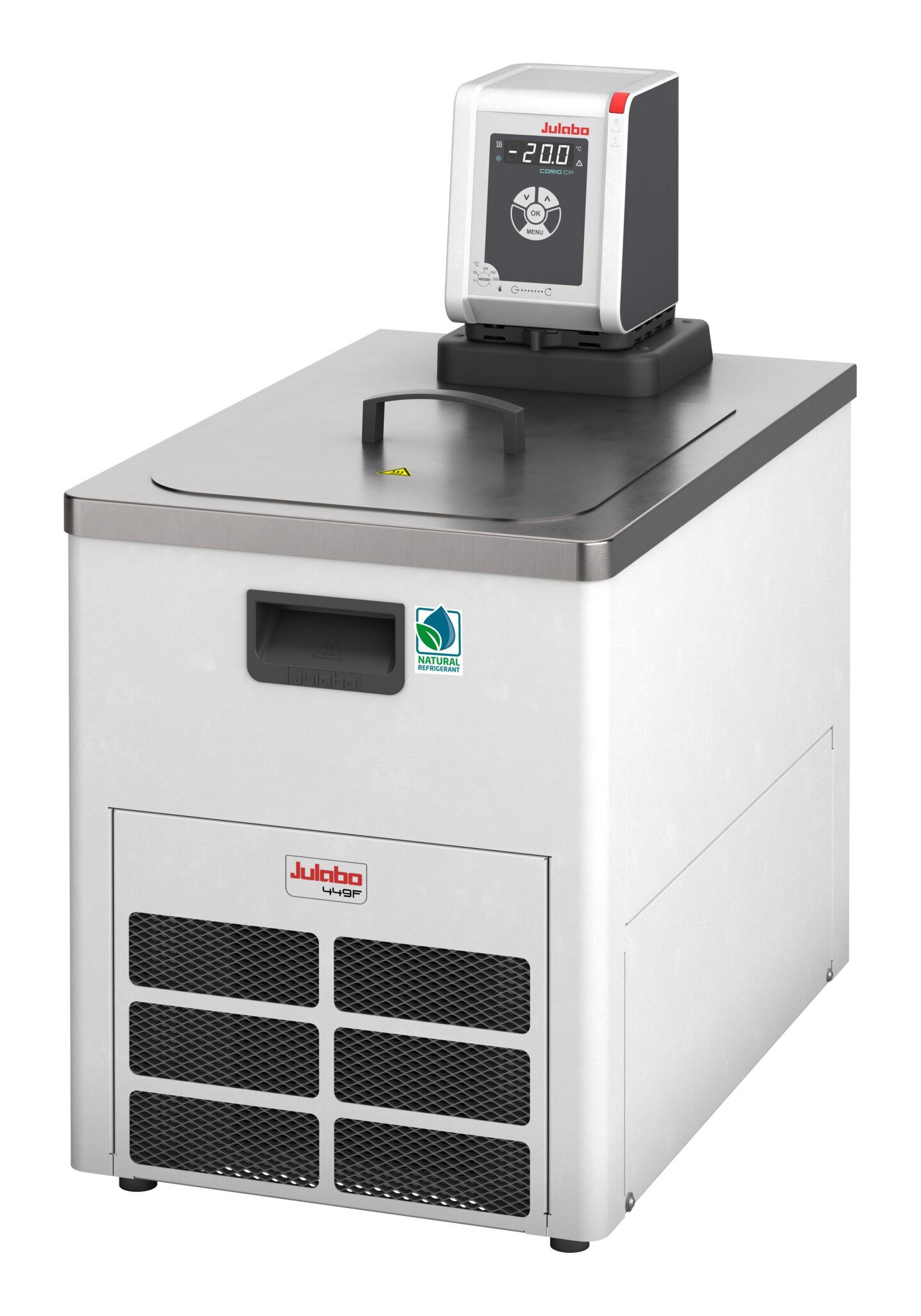

CORIO CP-449F refrigerated/heating circulator, -32…+200 °C range with 1kW heating power. Cooling power: 0.44kW at 20 °C, 0.35kW at 0 °C, 0.27kW at -10 °C, 0.2kW at -20 °, 0.06kW at -30 °C. Adjustable centrifugal pump to 8-27L/min, 1.5-10.2psi. Maximum fluid viscosity 50cSt. 21-30L SS bath tank recommended for internal applications, USB-B and RS232 communication ports, USB-A data-logging; usable opening 11 x 13.8/7.9 inches (WxL/D); Dimensions: 14.6 x 23.2 x 27.2 inches (WxLxH), 87.1 lbs. R290 refrigerant. 115V/60Hz with NEMA N5-15 plug. M16x1 threaded pump connections with 8mm and 12mm hose barbs.
