Specifications

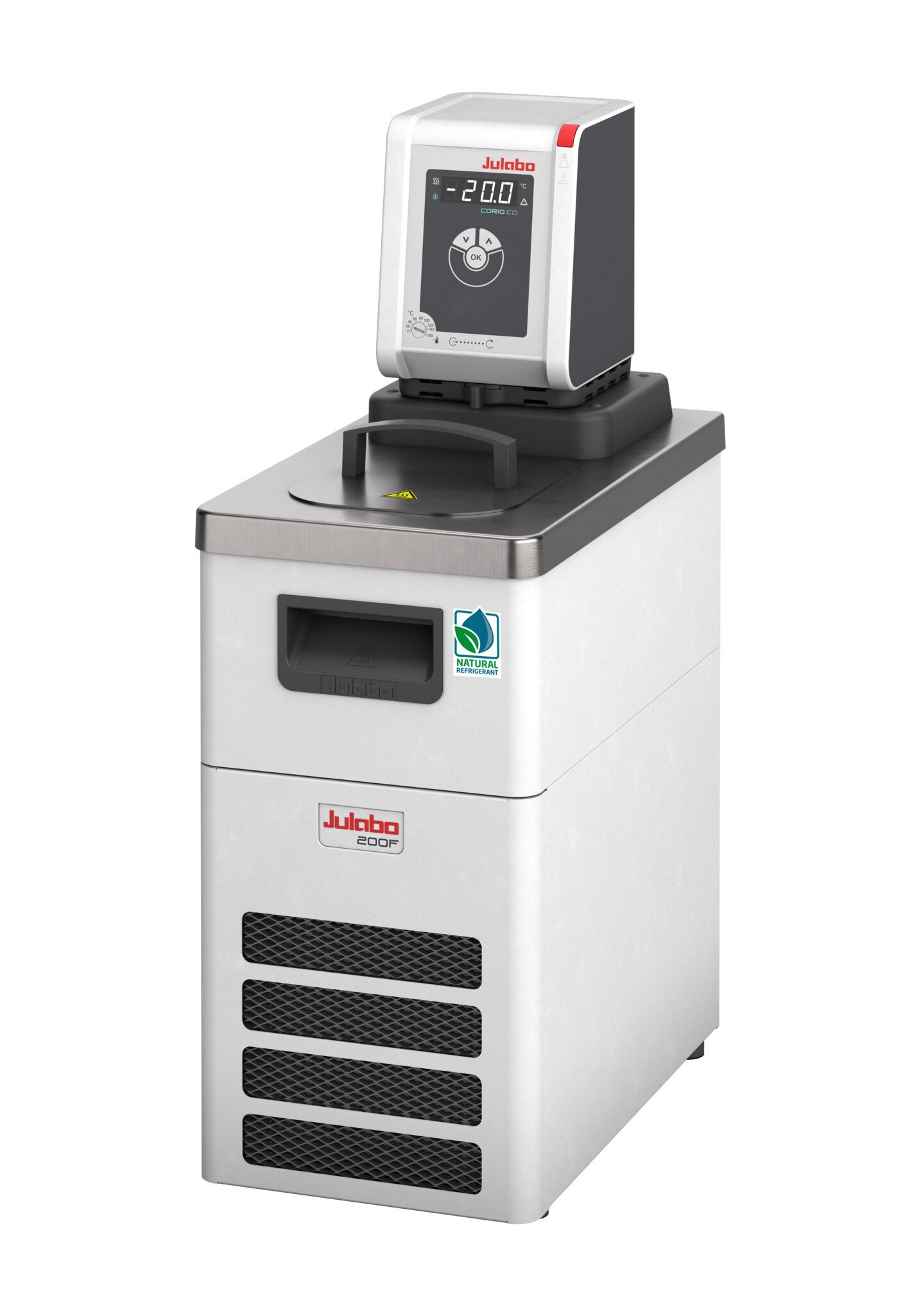

CORIO CD-200F refrigerated/heating circulator, -20…+150 °C range with 1kW heating power. Cooling power: 0.2kW at 20 °C, 0.17kW at 0 °C, 0.13kW at -10 °C, 0.06kW at -20 °C. Centrifugal pump to 16L/min, 4.8psi. Maximum fluid viscosity 50cSt. 3-4L SS bath tank, USB-B communication port, USB-A data-logging; usable opening 5.1 x 5.9/5.9 inches (WxL/D); Dimensions: 9.1 x 15.4 x 25.6 inches (WxLxH), 57.3 lbs. R290 refrigerant. 115V/60Hz with NEMA N5-15 plug. M16x1 threaded pump connections with 8mm and 12mm hose barbs.
